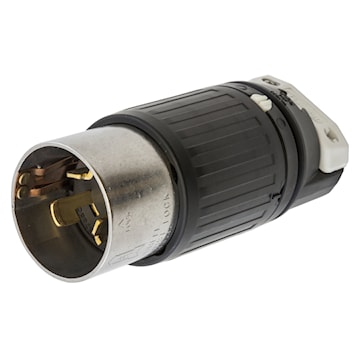

HUBBELL CANADA ULC HBL3765C Twist-Lock®, Insulgrip® Locking Male Plug 50 A, 240/600 VDC, Insulgrip, Standard Sized, Straight Angled

Price $236.57 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL3765C
Documents Documents

Description

TWIST-LOCK® plug standard made of nylon with 3 pole, 4 wire grounding, rynite interior, 50 A, 250 V DC, 600 V AC, 0.75-1.125 inch, IP20.


Super tough nylon housing offers better impact qualities

Stainless steel shroud protects contacts and prevents mismating

Heavy duty two-piece external cord clamp provides maximum strain relief

Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands

Thermoplastic polyester interior provides heat resistance and impact strength

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Insulgrip®
Item Name Locking Male Plug Type Insulgrip, Standard Sized, Straight Angled
Number of Wires 4 Number of Poles 3
Voltage Rating 240/600 VDC Amperage Rating 50 A
Conductor Size 6 AWG Color/Finish Black and White
Cord Type Portable Phase 1
Terminal Connection Pressure Screw Maximum Load Capacity 30000 W
NEMA Rating Non-NEMA Material Composite
Grounding Yes Degree of Protection IP20
Mounting Type Cord Environmental Conditions Indoor Dry Unless Protected by Additional Means
Standards UL 498 Application Extra Heavy Duty Industrial Application
UPC 783585236438
