hubcs8165c

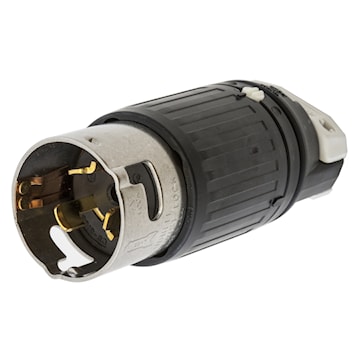

HUBBELL CANADA ULC CS8165C Twist-Lock®, Insulgrip® Locking Male Plug 50 A, 480 VAC, Insulgrip, Standard Sized, Straight Angled
hubcs8165c
HUBBELL CANADA ULC CS8165C Twist-Lock®, Insulgrip® Locking Male Plug 50 A, 480 VAC, Insulgrip, Standard Sized, Straight Angled
Price
$216.78
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:CS8165C
Description
Twist-Lock® standard plug made of nylon with 3 pole, 4 wire grounding, rynite interior, 3 phase 480 V AC, 50 A. 0.75 to 1.125 inch cord diameter.
Super tough nylon housing offers better impact qualities
Stainless steel shroud protects contacts and prevents mismating
Heavy duty two-piece external cord clamp provides maximum strain relief
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Thermoplastic polyester interior provides heat resistance and impact strength
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Insulgrip® |
| Item Name | Locking Male Plug | Type | Insulgrip, Standard Sized, Straight Angled |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 480 VAC | Amperage Rating | 50 A |
| Conductor Size | 6 AWG | Color/Finish | Black and White |
| Cord Type | Portable | Phase | 3 |
| Terminal Connection | Pressure Screw | Maximum Load Capacity | 24000 W |
| NEMA Rating | Non-NEMA | Material | Composite |
| Grounding | Yes | Degree of Protection | IP20 |
| Mounting Type | Cord | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | UL 498 | Application | Extra Heavy Duty Industrial Application |
| UPC | 783585828442 |
