Burlington
ilssls125

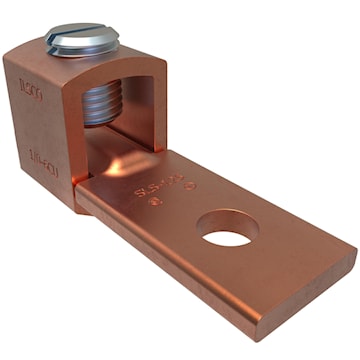

ILSCO SLS-125 ClearChoice Mechanical Lug 6-1/0 AWG Electrolytic Copper

Price $16.1051 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:ILSCO
Manufacturer #:SLS-125

Description

Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Item Name Mechanical Lug Type SLU, Offset Tongue, Straight
Conductor Size 6-1/0 AWG Number of Bolt Holes 1
Material Electrolytic Copper Number of Conductors 1
Bolt Size 17/64 in Tongue Size 0.625 in W x 0.125 in T
Voltage Rating 2 kV Mounting Hole Size 0.266 in
Temperature Rating 90 °C Finish Bright Dip
Color Copper Dimensions 1.938 in L
Standards UL 486A/B Listed and CSA Certified Application For Terminating Connector and for Copper Conductor Only
UPC 783669822847

Packages

1 - rarr_unit_1 100 - rarr_unit_2
