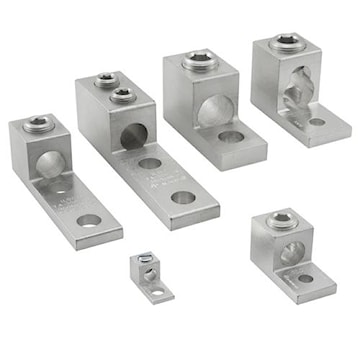

ILSCO TA-800-2NS ClearChoice Mechanical Lug 800 - 300 kcmil Aluminum
ilsta8002ns
ILSCO TA-800-2NS ClearChoice Mechanical Lug 800 - 300 kcmil Aluminum
Inventory
Unavailable for order
Manufacturer:ILSCO
Manufacturer #:TA-800-2NS
Description
Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | TA:1 CONDUCTOR AL/CU | Conductor Type | Stranded |
| Material | Aluminum | Number of Conductors | 1 |
| Voltage Rating | 35,000 V | Mounting Hole Size | 0.563 in |
| Temperature Rating | 90 degrees C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Mechanical Lug, One Conductor | UPC | 783669892185 |
Packages
| 1 - rarr_unit_1 | 100 - rarr_unit_2 |
