Burlington
hel62934

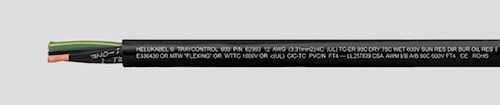

HELUKABEL CANADA 62934 MULTI 18C-16 TRAYCONTROL 600

Price $14.6000 / M
Inventory
Available for backorder
0for pick up at Burlington
M
() cuts
length (M)
Manufacturer:HELUKABEL CANADA
Manufacturer #:62934

Description

TRAYCONTROL® 600 flexible, oil resistant, open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79. NFPA 79 conformant flexible power cable up to 600 V (WTTC 1000 V), for all machinery in plant construction. Suitable for installation in dry, humid and damp environments, outdoors and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants.

Specifications

Brand Name Helukabel Sub Brand Traycontrol®
Item Name Control and Power Cable Type 600 Flexible, Oil-Resistant, TC-ER, PLTC-ER, ITC-ER
Number of Conductors 18 Conductor Size 16 AWG
Conductor Material Bare Copper Outside Diameter 16.4 mm
Stranded/Solid Stranded Voltage Rating 600 V
Jacket Color Black Color Code RAL 9005
Insulation Material PVC Jacket Material PVC
Temperature Rating -40 to 105 °C Standards CSA Certified, UL Listed
Application For All Machinery in New Plant Construction, Torsion Resistant, Exceptional Flexibility and Abrasion-Resistance and Installation in Dry, Humid and Damp Environments
