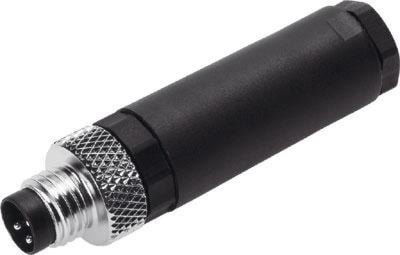

FESTO 192009 SEA-3GS-M8-S plug
Description
plug SEA-3GS-M8-S For valve terminals. Conforms to standard=(* EN 61076-2-104, * EN 61984), Assembly position=Any, Product weight=6 g, Container size=1, Electrical connection 1, design=Round
Specifications
Brand Name | Festo | Item Name | Plug |
Type | Round | Number of Wires | 3 |
Voltage Rating | <=60 V | Amperage Rating | 3 A |
Conductor Size | 0.14 - 0.5 mm² | Color/Finish | Black |
Cord Size | PG7 | Terminal Connection | Screw |
Temperature Rating | -40 to 85 °C | Contact Material | Gold-Plated Brass |
Material | Polyamide | Degree of Protection | IP65 |
For Use With | Valve Terminals | Standards | CE Certified, EN 61076-2-104, EN 61984, VDMA24364-B2-L |
