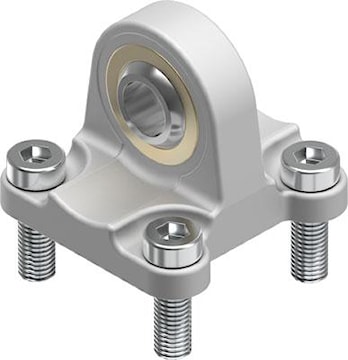

FESTO INC 174397 SNCS-32 swivel flange
Description
swivel flange SNCS-32 Size=32, Based on the standard=ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Corrosion resistance classification CRC=1 - Low corrosion stress, Ambient temperature=-40 - 150 °C, Product weight=86 g
Specifications
Brand Name | Festo | Item Name | Clevis Flange |
Diameter | 32 mm | Length | 45 mm |
Width | 45 mm | Material | Die-Cast Aluminum |
For Use With | DNC Standards-Based Cylinders | Standards | ISO 15552, VDMA24364-B2-L, RoHS Compliant |
