fesegz-16-10

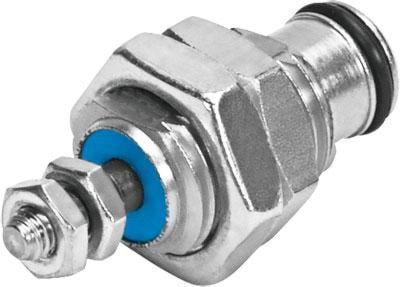

FESTO INC 15040 EGZ-16-10 cartridge cylinder
fesegz-16-10
FESTO INC 15040 EGZ-16-10 cartridge cylinder
Price
$123.79
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:15040
Description
cartridge cylinder EGZ-16-10 With double-ended male thread on cylinder housing . Stroke=10 mm, Piston diameter=16 mm, Cushioning=No cushioning, Assembly position=Any, Mode of operation=(* single-acting, * pushing action)
Specifications
| Brand Name | Festo | Item Name | Cartridge Cylinder |
| Port Size | M5 | Bore Size | 16 mm |
| Body Material | Brass | Stroke Length | 10 mm |
| Maximum Pressure | 8 bar | Temperature Rating | -20 to 80 °C |
| Series/Model | EGZ | Cylinder Action | Single Acting |
| Piston Rod Material | High Alloy Steel | Mounting | Lock Nut |
| Dimensions | 42.5 mm L x 27 mm W | Finish | Nickel-Plated |
