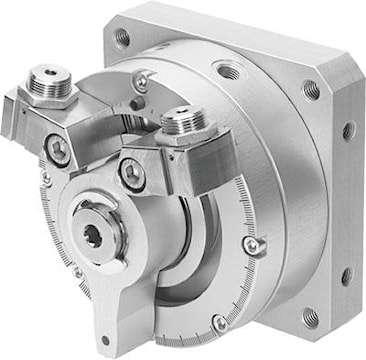

FESTO INC 547574 DSM-16-270-P-A-B semi-rotary drive
fesdsm-16-270-p-a-b
FESTO INC 547574 DSM-16-270-P-A-B semi-rotary drive
Price
$517.42
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:547574
Description
semi-rotary drive DSM-16-270-P-A-B with spigot shaft, fixed stop and position sensing Size=16, Cushioning angle=1,4 deg, Rotation angle adjustment range=0 - 270 deg, Swivel angle=0 - 270 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
Specifications
| Brand Name | Festo | Item Name | Rotary Actuator |
| Type | Size 16, Flexible Cushion, Spigot Shaft | Port Size | M5 |
| Body Material | Wrought Aluminum Alloy | Maximum Pressure | 10 bar |
| Temperature Rating | -10 to 60 °C | Series/Model | DSM |
| Cylinder Action | Double Acting | Piston Rod Material | Steel |
| Mounting | Threaded | Dimensions | 82.7 mm L x 70 mm W x 70 mm H |
| Finish | Nickel-Plated | Standards | RoHS Compliant |
