fesdgst-20-30-pa

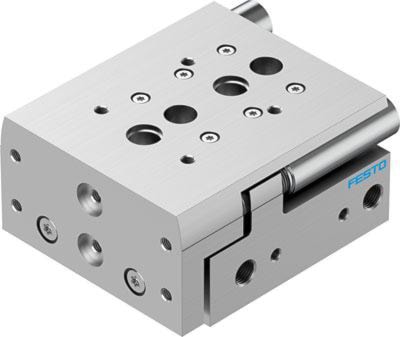

FESTO INC 8085141 DGST-20-30-PA mini slide
fesdgst-20-30-pa
FESTO INC 8085141 DGST-20-30-PA mini slide
Price
$702.03
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:8085141
Description
mini slide DGST-20-30-PA Stroke=30 mm, Adjustable endposition range/front length=30,1 mm, Adjustable endposition range/rear length=30,1 mm, Piston diameter=20 mm, Operating mode of drive unit=Yoke
Specifications
| Brand Name | Festo | Item Name | Mini Slide |
| Port Size | G1/8 | Bore Size | 20 mm |
| Body Material | Wrought Aluminum Alloy | Stroke Length | 30 mm |
| Maximum Pressure | 8 bar | Temperature Rating | -10 to 60 °C |
| Series/Model | DGST | Cylinder Action | Double Acting |
| Piston Rod Material | High Alloy Stainless Steel | Mounting | Through Hole |
| Dimensions | 97 mm L x 85 mm W | Finish | Anodized |
| Standards | RoHS Compliant |
