fesdgsl-10-80-y3a

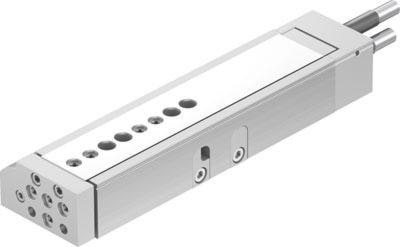

FESTO INC 543959 DGSL-10-80-Y3A mini slide
fesdgsl-10-80-y3a
FESTO INC 543959 DGSL-10-80-Y3A mini slide
Price
$1,622.20
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:543959
Description
mini slide DGSL-10-80-Y3A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, hydraulic shock absorbers on both sides (Y3). Stroke=80 mm, Adjustable endposition range/front length=48 mm, Adjustable endposition range/rear length=15 mm, Piston diameter=12 mm, Operating mode of drive unit=Yoke
Specifications
| Brand Name | Festo | Item Name | Mini Slide |
| Port Size | M5 | Bore Size | 12 mm |
| Body Material | Wrought Aluminum Alloy | Stroke Length | 80 mm |
| Maximum Pressure | 8 bar | Temperature Rating | 0 - 60 °C |
| Series/Model | DGSL | Cylinder Action | Double Acting |
| Piston Rod Material | High Alloy Stainless Steel | Mounting | Through Hole |
| Dimensions | 211.7 mm L x 49 mm W x 29 mm H | Finish | Anodized |
| Standards | RoHS Compliant |
