fesdfm-32-200-p-a-gf

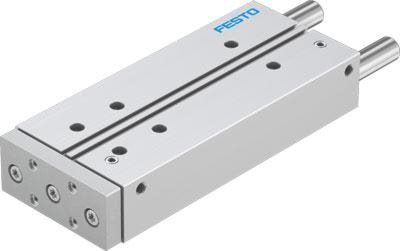

FESTO 170863 DFM-32-200-P-A-GF guided drive
fesdfm-32-200-p-a-gf
FESTO 170863 DFM-32-200-P-A-GF guided drive
Price
$723.46
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO
Manufacturer #:170863
Description
guided drive DFM-32-200-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate=50 mm, Stroke=200 mm, Piston diameter=32 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends
Specifications
| Brand Name | Festo | Item Name | Guided Actuator |
| Port Size | G1/8 | Bore Size | 32 mm |
| Body Material | Wrought Aluminum Alloy | Stroke Length | 200 mm |
| Maximum Pressure | 10 bar | Temperature Rating | -20 to 80 °C |
| Series/Model | DFM | Cylinder Action | Double Acting |
| Piston Rod Material | High Alloy Stainless Steel | Dimensions | 319 in L x 49 in W x 110 in H |
| Finish | Anodized | Standards | RoHS Compliant |
