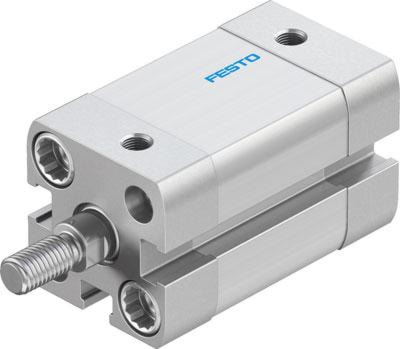

FESTO 536221 ADN-16-15-A-P-A compact cylinder

Price $71.73 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:FESTO
Manufacturer #:536221

Description

compact cylinder ADN-16-15-A-P-A With position sensing and external piston rod thread Stroke=15 mm, Piston diameter=16 mm, Piston rod thread=M6, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any

Specifications

Brand Name Festo Item Name Compact Air Cylinder
Port Size M5 Bore Size 16 mm
Body Material Wrought Aluminum Alloy Stroke Length 15 mm
Maximum Pressure 10 bar Temperature Rating -20 to 80 °C
Series/Model ADN Cylinder Action Double Acting
Piston Rod Material High Alloy Steel Mounting Through Hole
Dimensions 55.7 mm L x 27.5 mm W x 27.5 mm H Finish Smooth Anodized
Standards RoHS Compliant
