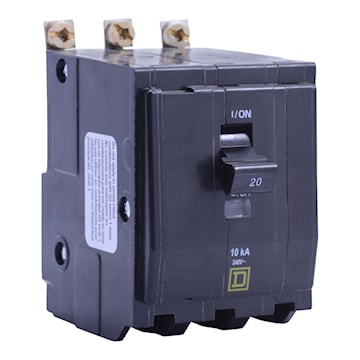

DEALER SOURCE INC. QOB320 QO® Miniature Circuit Breaker Type QOB, Standard 20 A, 3 P, Pressure Plate
sqdqob320
DEALER SOURCE INC. QOB320 QO® Miniature Circuit Breaker Type QOB, Standard 20 A, 3 P, Pressure Plate
Price
$280.15
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:DEALER SOURCE INC.
Manufacturer #:QOB320
Description
SCHNEIDER QOB (bolt-on) one-, two- and three-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed-D® switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards.
Specifications
| Brand Name | Square D | Sub Brand | QO® |
| Item Name | Miniature Circuit Breaker | Type | Type QOB, Standard |
| Number of Poles | 3 | Interrupt Rating | 10 kA |
| Amperage Rating | 20 A | Voltage Rating | 120/240 VAC |
| Terminal Connection | Pressure Plate | Mounting Type | Bolt-On |
| Phase | 3 | Frequency Rating | 60 Hz |
| Conductor Size | 14-8 AWG Aluminum/Copper | NEMA Rating | Type AB1 |
| Trip Type | Thermal Magnetic | Temperature Rating | 40 °C |
| Dimensions | 2-1/4 in W x 2.91 in D x 3 in H | For Use With | NQO and NQOD Panelboards |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
