ilsau3502n

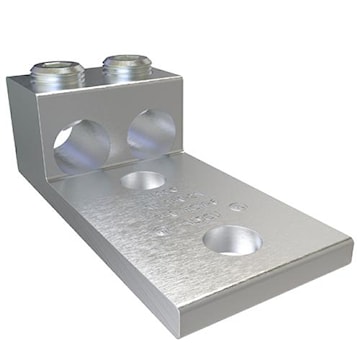

ILSCO CANADA NEWCO ULC AU-350-2N ClearChoice Mechanical Lug 350 kcmil - 6 AWG Aluminum
ilsau3502n
ILSCO CANADA NEWCO ULC AU-350-2N ClearChoice Mechanical Lug 350 kcmil - 6 AWG Aluminum
Price
$57.8883
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:AU-350-2N
Description
Dual rated aluminum mechanical lug, two conductor. Manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | AU |
| Conductor Type | Aluminum/Copper | Conductor Size | 350 kcmil - 6 AWG |
| Material | Aluminum | Number of Conductors | 2 |
| Voltage Rating | 2000 V | Mounting Hole Size | 1-3/4 in |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File No. LR-29601, UL 486A-B, UL E6207 |
| Application | Terminating Connector | UPC | 783669005745 |
