ilsclwd81434
ILSCO CANADA NEWCO ULC CLWD-8-14-34 CU CMP W/SYT 8 AWG 9/32-3/4 T UL CSA LON
ilsclwd81434
ILSCO CANADA NEWCO ULC CLWD-8-14-34 CU CMP W/SYT 8 AWG 9/32-3/4 T UL CSA LON
Price
$20.36
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:CLWD-8-14-34
Description

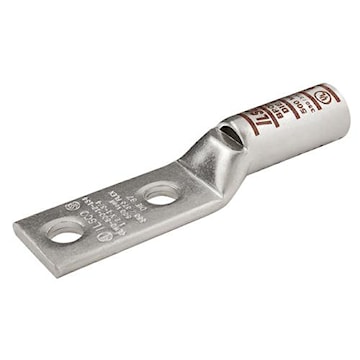

Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 8 Sol, 8 Str, sight window, Square tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,
Specifications
| Brand Name | ILSCO | Sub Brand | Surecrimp |
| Type | CLWD:2 HOLE LONG W/SIGHT | Number of Holes | 2 |
| Barrel Length | 0.812 in | Material | Copper |
| Voltage Rating | 35,000 V | Barrel Type | Long |
| Strip Length | 22.199 mm | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207 | Application | Copper Compression Lug |
| UPC | 783669628111 |
