fesmap-40-4-1/8-en
FESTO INC 162842 MAP-40-4-1/8-EN precision pressure gauge
fesmap-40-4-1/8-en
FESTO INC 162842 MAP-40-4-1/8-EN precision pressure gauge
Price
$37.93
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:162842
Description

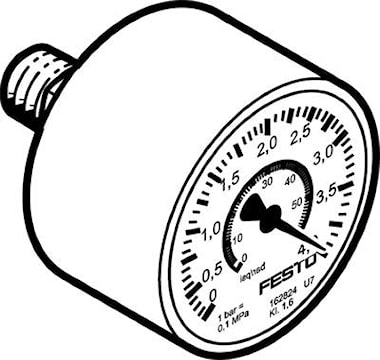

precision pressure gauge MAP-40-4-1/8-EN With display unit in bar and psi. Indicating range [bar]=0 - 4 bar, Display range=1 - 58 psi, Conforms to standard=EN 837-1, Nominal size of pressure gauge=40, Design structure=Bourdon-tube pressure gauge
Specifications
| Brand Name | Festo | Item Name | Precision Pressure Gauge |
| Type | Bourdon Tube | Dial Size | 40 mm |
| Pressure Rating | 0 - 58 lb/in² | Connection Size | R1/8 |
| Connection Location | Center, Rear | Series/Model | MAP |
| Mounting Type | In-Line | Accuracy | 1.6% |
| Measuring System | bar, lb/in² | Material | PBT |
| Color/Finish | Black | Temperature Rating | -20 to 60 °C |
| Dimensions | 38.8 mm dia x 45 mm W | Standards | RoHS Compliant |
