intff4h

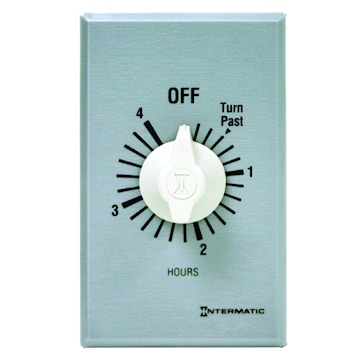

INTERMATIC INC FF4H SPRING WOUND COUNTDOWN TIMER, COMMERCIAL, 125-277 VAC, 50/60 HZ, SPST, 4 HOUR MAX, WITHOUT HOLD, SILVER
intff4h
INTERMATIC INC FF4H SPRING WOUND COUNTDOWN TIMER, COMMERCIAL, 125-277 VAC, 50/60 HZ, SPST, 4 HOUR MAX, WITHOUT HOLD, SILVER
Price
$91.09
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:INTERMATIC INC
Manufacturer #:FF4H
Description
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
4-Hour timer
No electricity required to operate
SPST (Single-Pole Single-Throw
Breaks circuit at end of timing cycle
Replaces any standard or decorator single-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Brushed metal look switch plate meets NEC requirements (plate is included)
Incandescent/fluorescent/CFL/LED compatible
Specifications
| Brand Name | NA | Type | Commercial Spring Wound Auto-Off |
| Voltage Rating | 125 to 277 VAC | Amperage Rating | 15 A |
| Number of Poles | 1 | Contact Configuration | 1 NO |
| Frequency Rating | 50/60 HZ | Color | Silver |
| Mounting | Wall Mount | Standards | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC |
| Application | Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control | UPC | 078275074026 |
