hubdsm30w1
HUBBELL CANADA ULC DSM30W1 SWITCH,DECO,1P MOMENT,100MA 30V DC,WH
hubdsm30w1
HUBBELL CANADA ULC DSM30W1 SWITCH,DECO,1P MOMENT,100MA 30V DC,WH
Price
$42.28
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:DSM30W1
Description

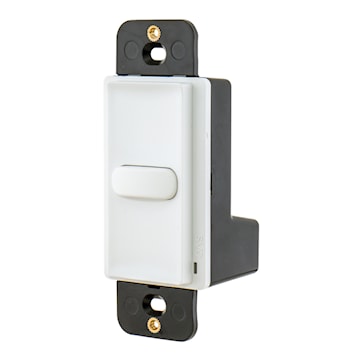

Switches and Lighting Controls, Decorator Rocker Switch, Single Pole, Momentary Contact, 100mA 30V DC, Single Button, White
Available latching or momentary contact
Mounts to standard single gang box
Attractive, architectural design
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | HMOSS Decorator Switches |
| Item Name | Decorator Rocker Switch | Type | Non-Reversing |
| Voltage Rating | 24 VDC | Amperage Rating | 100 mA |
| Contact Configuration | Momentary | Number of Poles | 1 |
| Series | Dual;Passive Infrared;Ultrasonic | Contact Rating | Per UL 20 |
| Actuator | Rocker | Mounting | Screw |
| Connection | Terminal Screw | Enclosure Standard | None |
| Temperature Rating | 0 - 50 °C | Material | Composite |
| Color | White | Operating Cycles | 10000 |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | NEMA WD1, UL20 |
| Application | For Lighting Control | UPC | 783585159386 |
