hubhbl2600
HUBBELL CANADA ULC HBL2600 LKG RCPT, 30A 240V L-N, L25-30R, BK
hubhbl2600
HUBBELL CANADA ULC HBL2600 LKG RCPT, 30A 240V L-N, L25-30R, BK
Price
$87.60
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2600
Description

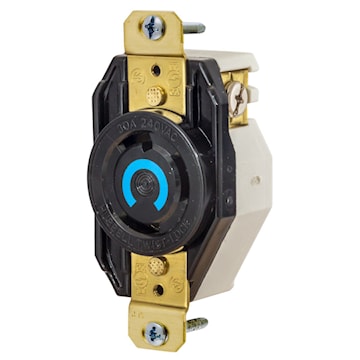

Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 2 Pole, 3 Wire, 240VAC, Line to Neutral, NEMA L25-30R, Black nylon face, back and side wired
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Specifications
| Brand Name | Hubbell | Sub Brand | Twist-Lock®, Variload® |
| Size | Standard Product | Voltage Rating | 240 VAC |
| Amperage Rating | 30 A | Wattage | 7200 W |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Rating | L25-30R | Material | Thermoplastic |
| Color | Black,Orange,White | Phase | 1 |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | NEMA WD1 and WD5, UL 498 |
| Application | For General and Industrial ID, Indoor/Outdoor Use | UPC | 783585580319 |
