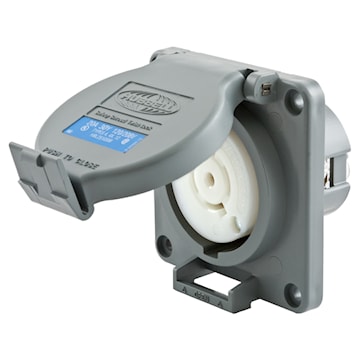

HUBBELL CANADA ULC HBL2510SW Twist-Lock® Heavy Duty, Shrouded Locking Single Receptacle 20 A, L21-20R Gray and White
hubhbl2510sw
HUBBELL CANADA ULC HBL2510SW Twist-Lock® Heavy Duty, Shrouded Locking Single Receptacle 20 A, L21-20R Gray and White
Price
$257.92
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2510SW
Description
Hubbell ELASTOGRIP receptacles are standard strait blades 2 poles, 15-20 amp 125 volts and twist-lock 2-3 poles, 15-20-30 amp, 125-250-480-600 volts. Made of a white nylon insert connector into yellow elastomer thermoplastic housing with gland cable nut cable inser that providing protection against dust and water. A rubber closure cap seal is installed on female socket come as standard.
High impact, thermoplastic housing for heavy-duty industrial environments
Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
Catalog number and color coded voltage rating are visible even when in use
Catalogue number and color coded voltage rating are visible even when in use
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Single Receptacle | Type | Heavy Duty, Shrouded |
| Grade | Industrial | Size | Standard |
| Voltage Rating | 120/208 VAC | Amperage Rating | 20 A |
| Wattage | 4160 W | Number of Poles | 4 |
| Number of Wires | 5-Wire Grounding | NEMA Rating | L21-20R |
| Conductor Size | 14-8 AWG | Material | Thermoplastic |
| Color | Gray and White | Phase | 3 |
| Terminal Connection | Screw | Dielectric Strength | Withstands 2,000V minimum |
| Mounting Type | Screw, Surface | Environmental Conditions | Watertight |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial Shrouded Watertight |
| UPC | 783585231501 |
