hubhbl2731sw

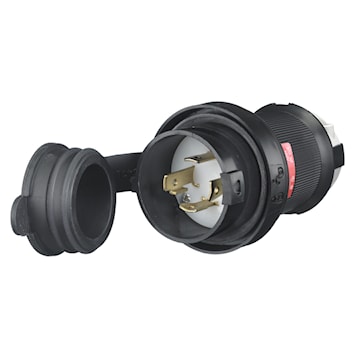

HUBBELL CANADA ULC HBL2731SW Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 30 A, 480 VAC, Shrouded, Standard Sized
hubhbl2731sw
HUBBELL CANADA ULC HBL2731SW Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 30 A, 480 VAC, Shrouded, Standard Sized
Price
$217.55
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2731SW
Description
Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.
UL Type 4X Environmental seal protects connection while in use.
Impact resistant shroud protects blades against bending and breaking.
Reduces exposure to arcing when connecting or disconnecting under load.
Superior cord grip design protects terminations from excess strain.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Watertight Safety-Shroud® |
| Item Name | Locking Male Plug | Type | Shrouded, Standard Sized |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 480 VAC | Amperage Rating | 30 A |
| Conductor Size | 12-8 AWG | Color/Finish | Black and White |
| Cord Type | Portable | Phase | 3 |
| Terminal Connection | Pressure Screw | Maximum Load Capacity | 14400 W |
| NEMA Rating | L16-30R | Material | Composite |
| Grounding | Yes | Mounting Type | Surface |
| Environmental Conditions | Watertight | Standards | UL 498, NEMA WD-1, WD-5 |
| Application | Extra Heavy Duty Industrial Application | UPC | 783585231921 |
