HUBBELL CANADA ULC HBL2621VY Twist-Lock®, Valise® Locking Plug 30 A, 250 VAC, Standard Sized
hubhbl2621vy
HUBBELL CANADA ULC HBL2621VY Twist-Lock®, Valise® Locking Plug 30 A, 250 VAC, Standard Sized
Price
$68.94
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2621VY
Description

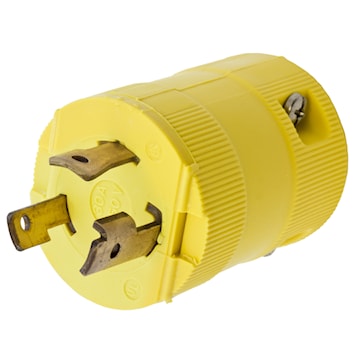

Twist-Lock® valise plug made of nylon with 2 pole, 3 wire grounding, 250V AC, 30 A. 0.59 to 0.93 inch cord diameter.
Powerful cord grip prevents conductor slippage and strain on wiring terminals
Totally insulated impact and crush resistant nylon body
Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Valise® |
| Item Name | Locking Plug | Type | Standard Sized |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 250 VAC | Amperage Rating | 30 A |
| Conductor Size | 14-8 AWG | NEMA Configuration | L6-30P |
| Color/Finish | Yellow | Cord Type | Portable |
| Cord Size | 0.59 - 0.93 in | Phase | 1 |
| Terminal Connection | Pressure Screw | Temperature Rating | -40 to 75 °C Continuous |
| Maximum Load Capacity | 7500 W | NEMA Rating | L6-30P |
| Dielectric Strength | 2000 V | Material | Nylon |
| Grounding | Yes | Degree of Protection | IP20 |
| Mounting Type | Cord | Dimensions | 2-1/2 in L x 1.78 in W x 1.78 in H |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 |
| Application | Extra Heavy Duty Industrial | UPC | 783585236025 |
