hubhbl2441

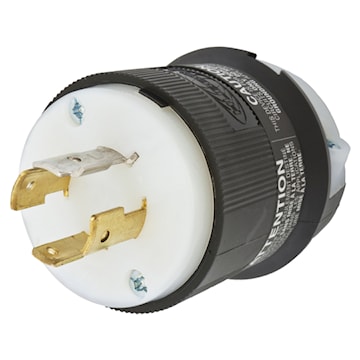

HUBBELL CANADA ULC HBL2441 Twist-Lock®, Insulgrip® Locking Male Plug 20 A, 120/208 VAC, Standard Sized
hubhbl2441
HUBBELL CANADA ULC HBL2441 Twist-Lock®, Insulgrip® Locking Male Plug 20 A, 120/208 VAC, Standard Sized
Price
$101.29
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2441
Description
Hubbell INSULGRIP twist-lock cable plugs and connectors are made of white nylon locking blade insert, black ribbed grip housing and 2 pieces screw cable clamp (full black model available). They follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250-277-347-480-600 volts.
Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or contaminants.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Insulgrip® |
| Item Name | Locking Male Plug | Type | Standard Sized |
| Number of Wires | 4 | Number of Poles | 4 |
| Voltage Rating | 120/208 VAC | Amperage Rating | 20 A |
| Conductor Size | 16-8 AWG | NEMA Configuration | L18-20P |
| Color/Finish | Black and White | Cord Type | Portable |
| Cord Size | 0.35 - 1.15 in | Phase | 3 |
| Terminal Connection | Pressure Screw | Temperature Rating | -40 to 75 °C Continuous |
| Maximum Load Capacity | 4160 W | NEMA Rating | L18-20P |
| Dielectric Strength | 2000 V | Material | Nylon |
| Grounding | No | Degree of Protection | IP20 |
| Mounting Type | Cord | Dimensions | 2.33 in L x 2.33 in W x 2-3/4 in H |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 |
| Application | Extra Heavy Duty Industrial | UPC | 783585038353 |
