hubhbl2321vy

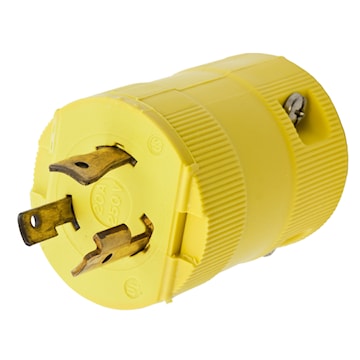

HUBBELL CANADA ULC HBL2321VY Twist-Lock®, Valise® Locking Male Plug 20 A, 250 VAC, Standard Sized
hubhbl2321vy
HUBBELL CANADA ULC HBL2321VY Twist-Lock®, Valise® Locking Male Plug 20 A, 250 VAC, Standard Sized
Price
$38.12
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2321VY
Description
Hubbell VALISE twist-lock cable plugs and connectors are made of one piece yellow thermoplastic locking blade insert and cover that hold securely the cable with 2 screws (full black model available). Available in black or white; they follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250 volts.
One piece body design uses less fasteners for ease of assembly
Powerful cord grip prevents conductor slippage and strain on wiring terminals
Totally insulated impact and crush resistant nylon body
Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Valise® |
| Item Name | Locking Male Plug | Type | Standard Sized |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 250 VAC | Amperage Rating | 20 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | L6-20P |
| Color/Finish | Yellow | Cord Type | Portable |
| Cord Size | 0.325 - 0.72 in | Phase | 1 |
| Terminal Connection | Pressure Screw | Temperature Rating | -40 to 75 °C Continuous |
| Maximum Load Capacity | 5000 W | NEMA Rating | L6-20P |
| Dielectric Strength | 2000 V | Material | Nylon |
| Grounding | Yes | Degree of Protection | IP20 |
| Mounting Type | Cord | Dimensions | 1.78 in L x 1.78 in W x 2-1/2 in H |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 |
| Application | Extra Heavy Duty Industrial | UPC | 783585235622 |
