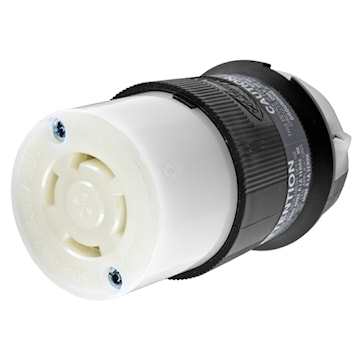

HUBBELL CANADA ULC HBL2773 Twist-Lock®, Insulgrip® Locking Connector Insulated, Standard, 4-Pole 30 A, 347/600 VAC, 4-Wire Non-Grounding Conductors Black and White

Price $265.01 / EA
Inventory
11for delivery
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2773
Documents Documents

Description

Hubbell INSULGRIP twist-lock cable plugs and connectors are made of white nylon locking blade insert, black ribbed grip housing and 2 pieces screw cable clamp (full black model available). They follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250-277-347-480-600 volts.


Ribbed nylon housing provides a secure grip and impact and chemical resistance

Superior cord grip design protects terminations from excess strain

Clear, funnel shaped wire entry for ease of termination

Integral dust shield protects wiring chamber from dust or contaminants

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Insulgrip®
Item Name Locking Connector Type Insulated, Standard, 4-Pole
Voltage Rating 347/600 VAC Amperage Rating 30 A
Conductor Size 12 - 8 AWG Number of Conductors 4-Wire Non-Grounding
Connection Type Pressure Screw Terminal Phase 3
Material Composite Color Black and White
Length 2.33 in Mounting Cord
NEMA Rating L20-30R Temperature Rating 75 °C Maximum Continuous, -40 °C Minimum Continuous without impact, -25 °C with Impact
Standards NEMA WD-1 and WD-5, UL 498 Application Heavy Duty Industrial
UPC 783585039527
