hubhbl25w47

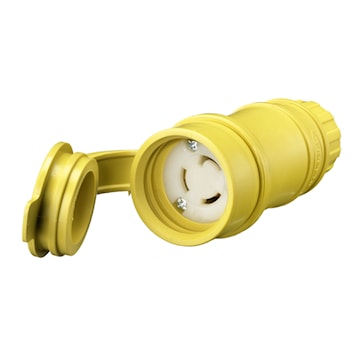

HUBBELL CANADA ULC HBL25W47 Twist-Lock®, Elastogrip® Locking Female Connector Heavy Duty 15 A, 125 V, 2-Wire Non-Grounding Conductors Yellow
hubhbl25w47
HUBBELL CANADA ULC HBL25W47 Twist-Lock®, Elastogrip® Locking Female Connector Heavy Duty 15 A, 125 V, 2-Wire Non-Grounding Conductors Yellow
Price
$77.26
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL25W47
Description
Hubbell ELASTOGRIP receptacles are standard strait blades 2 poles, 15-20 amp 125 volts and twist-lock 2-3 poles, 15-20-30 amp, 125-250-480-600 volts. Made of a white nylon insert connector into yellow elastomer thermoplastic housing with gland cable nut cable inser that providing protection against dust and water. A rubber closure cap seal is installed on female socket come as standard.
Integral weatherproofing shroud seals connection between plug and connector
Nylon compression nut keeps water and dust from getting into the body around the cord
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Elastogrip® |
| Item Name | Locking Female Connector | Type | Heavy Duty |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 2-Wire Non-Grounding |
| Material | Composite | Color | Yellow |
| Length | 1.76 in | Mounting | Cord Mounted |
| NEMA Rating | L5-15R | Temperature Rating | -25 to 75 °C with Impact, -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial |
| UPC | 783585235912 |
