HUBBELL CANADA ULC HBL400MY Plug single pole 400A male yellow
hubhbl400my
HUBBELL CANADA ULC HBL400MY Plug single pole 400A male yellow
Price
$83.12
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL400MY
Description

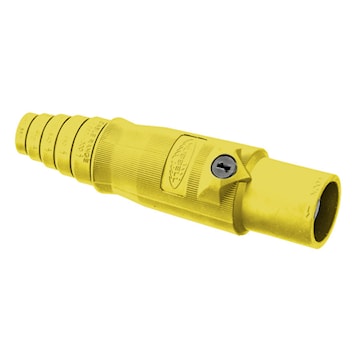

Single pole thermoplastic elastomer male plug. Cable size 2/0 - 4/0 AWG.
Insulgrip® Style Housing for Superior Gripping
Non-Conductive Retaining Screw locks contacts in place
Large Raised Alignment Arrow aids in the mating of devices
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Single Pin |
| Item Name | 1-Pole Male Plug | Type | SC/PPC, Standard |
| Voltage Rating | 600 VAC, 250 VDC | Amperage Rating | 400 A |
| Conductor Size | 2/0-4/0 AWG | Number of Conductors | 1 |
| Connection Type | Pressure Screw Terminal | Wattage | 240000 W |
| Phase | 1 | Material | Composite |
| Color | Yellow | Number of Ports | 1 |
| Length | 6.700 in | Mounting | Cord |
| NEMA Rating | Non-NEMA | Standards | UL 498, UL 1310 |
| Application | For High Ampacity Connections | UPC | 783585112336 |
