hubhbl400mo

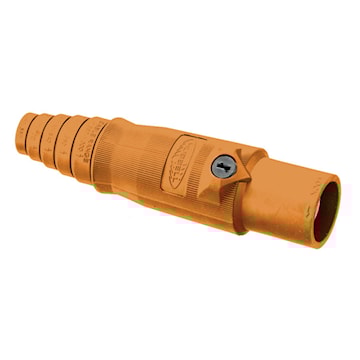

HUBBELL CANADA ULC HBL400MO Single Pole Single Pole Male Plug 400 A, 600 VAC, 250 VDC, Standard Sized
hubhbl400mo
HUBBELL CANADA ULC HBL400MO Single Pole Single Pole Male Plug 400 A, 600 VAC, 250 VDC, Standard Sized
Price
$83.12
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL400MO
Description
Single pole thermoplastic elastomer male plug. Cable size 2/0 - 4/0 AWG.
Insulgrip® Style Housing for Superior Gripping
Non-Conductive Retaining Screw locks contacts in place
Large Raised Alignment Arrow aids in the mating of devices
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Single Pin |
| Item Name | Single Pole Male Plug | Type | Standard Sized |
| Number of Wires | 1 | Number of Poles | 1 |
| Voltage Rating | 600 VAC, 250 VDC | Amperage Rating | 400 A |
| Conductor Size | 4-2/0 AWG | Color/Finish | Orange |
| Cord Type | SC/PPC | Phase | 1 |
| Terminal Connection | Pressure Screw | Maximum Load Capacity | 240000 W |
| NEMA Rating | Non-NEMA | Material | Composite |
| Mounting Type | Cord | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | UL 498, UL 1691 | Application | High Ampacity Connections |
| UPC | 783585112305 |
