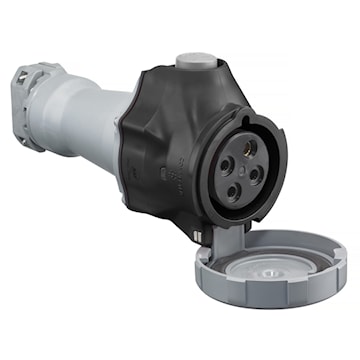

HUBBELL CANADA ULC HBLS430C5W IEC 309 Pin and Sleeve Protective Contact, IEC, Straight Angled Pin and Sleeve Connector 30 A, Non-NEMA Black

Price $972.40 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBLS430C5W
Documents Documents

Description

Advantage™ Series switch-rated IEC pin and sleeve device connector features UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Hubbell puts the Advantage™ into the palm of your hands with the easy-to-use leverage grip design from Hubbell. UL witnessed IP69k and UL Type 4X and 12. Device is built to withstand wet and harsh environments. Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected.


Mates with existing installed base of IEC 60309-2 pin and sleeve devices

Approved as a diconnecting means for motor circuits and branch circuits

UL Type 4X, 12 and IP69k environmental ratings

Impact and corrosion-resistant PBT that is color coded by voltage

Unswitched ground and power indicating LED lights

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand IEC 309 Pin and Sleeve
Item Name Pin and Sleeve Connector Type Protective Contact, IEC, Straight Angled
Size Standard Sized Voltage Rating 600 V
Amperage Rating 30 A Wattage 18,000 Watt
Number of Poles 3 Number of Wires 4
NEMA Rating Non-NEMA Material Brass/Non-Metallic
Color Black Phase 3
Environmental Conditions Watertight Standards UL498, IEC60309
Application Industrial/Commercial UPC 783585550435
