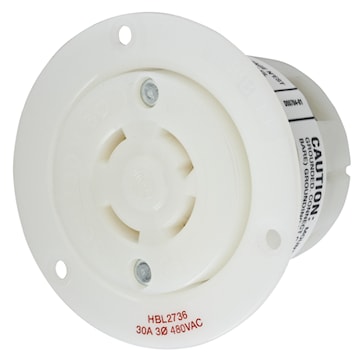

HUBBELL CANADA ULC HBL2736 Twist-Lock® Locking Flanged Receptacle Standard, Single, 3-Pole 30 A, 480 VAC, 4 Conductors White

Price $134.84 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2736
Documents Documents

Description

TWIST-LOCK® Insulgrip® flanged receptacle. 3-pole 4-wire grounding. Impact resistant thermoplastic construction. Back wired terminations for ease of installation. Made of nylon casing and clear polycarbonate terminal retainer. Steel, nickel plated 0.08 inch terminal clamp. #10-32 multiple drive terminal screws (slotted, Phillips, Robertson). Included mounting screws.


Impact resistant thermoplastic construction

Backwired terminations for ease of installation

#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)

Mounting screws included

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®
Item Name Locking Flanged Receptacle Type Standard, Single, 3-Pole
Voltage Rating 480 VAC Amperage Rating 30 A
Conductor Size 12 - 8 AWG Number of Conductors 4
Connection Type Screw Terminal Wattage 14400 W
Phase 3 Material Thermoplastic/Composite
Color White Length 3.06 in
Mounting Screw Mount NEMA Rating L16-30R
Standards NEMA WD-1 and WD-5, UL 498 Application Insulgrip
UPC 783585039367
