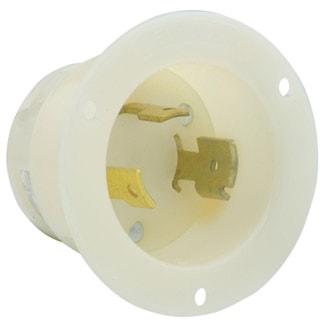

LEVITON MANUFACTURING 2655 30 Amp, 600 Volt, Flanged Inlet Locking Receptacle, Industrial Grade
lev2655
LEVITON MANUFACTURING 2655 30 Amp, 600 Volt, Flanged Inlet Locking Receptacle, Industrial Grade
Price
$111.82
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:LEVITON MANUFACTURING
Manufacturer #:2655
Description
30 Amp, 600 Volt, NEMA L9-30P, 2P, 3W, Flanged Inlet Locking Receptacle, Industrial Grade, Grounding - WHITE
Specifications
| Brand Name | Leviton | Sub Brand | LOCKING DEVICES |
| Type | Locking | Size | 2.88 Dia x 2.11 H IN |
| Voltage Rating | 600 V | Amperage Rating | 30 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back Wired | NEMA Rating | L9-30P |
| Material | Nylon | Color | White |
| Dielectric Strength | 2000 (Min.) | Grounding | Grounding |
| Contact Material | Solid Brass | Mounting Type | Flange |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13393) | Application | Commercial |
| UPC | 078477806128 |
