hubhbl5378c

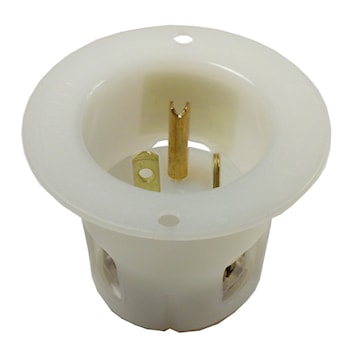

HUBBELL CANADA ULC HBL5378C Straight Blade Devices Straight Blade Flanged Inlet Standard, Single, Straight 20 A, 125 V, 2 Ports 3 Conductors White
hubhbl5378c
HUBBELL CANADA ULC HBL5378C Straight Blade Devices Straight Blade Flanged Inlet Standard, Single, Straight 20 A, 125 V, 2 Ports 3 Conductors White
Price
$79.32
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL5378C
Description
Hubbell HBL strait blade cable plug / flanged inlet and cable connector / flanged outlet are made of white nylon locking blade insert, black grip housing and 1 piece screw cable clamp or one piece white recess unit. They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts.
Impact resistant thermoplastic construction
Backwired terminations for ease of installation
#8-32 Multiple drive terminal screws
Mounting screws included
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade Inlets |
| Item Name | Straight Blade Flanged Inlet | Type | Standard, Single, Straight |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 3 |
| Connection Type | Screw Terminal | Wattage | 2500 W |
| Phase | 1 | Material | Thermoplastic |
| Color | White | Number of Ports | 2 |
| Length | 1.71 in | Mounting | Screw Mount |
| NEMA Rating | 5-20P | Temperature Rating | -40 degrees C |
| Standards | UL 498, NEMA WD-1 and WD-5 | Application | Extra Heavy Duty Industrial |
| UPC | 783585174402 |
