HUBBELL CANADA ULC HBL3777 Twist-Lock® Flanged Inlet 50 A, 600 VAC, 250 VDC, Locking, Industrial Grade
hubhbl3777
HUBBELL CANADA ULC HBL3777 Twist-Lock® Flanged Inlet 50 A, 600 VAC, 250 VDC, Locking, Industrial Grade
Price
$294.97
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL3777
Description

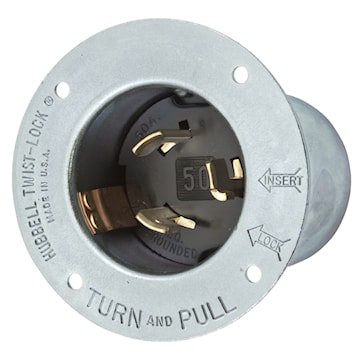

TWIST-LOCK® Flanged inlet. 2-pole 3-wire grounding. Metallic flanged casing provides maximum strength and protection. Made of steel pressure screw-zinc plate terminal and ground screw, steel weldment casing. Thermoset interior provides superior heat resistance.
Metallic flanged casing provides maximum strength and protection
Thermoset interior provides superior heat resistance
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Flanged Inlet | Type | Locking, Industrial Grade |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 600 VAC, 250 VDC | Amperage Rating | 50 A |
| Conductor Size | 6 AWG | Phase | 3 |
| Terminal Connection | Pressure Screw | Maximum Load Capacity | 30 kW |
| NEMA Rating | Non-NEMA | Dielectric Strength | Withstands 2,000V minimum |
| Material | Thermoplastic | Mounting Type | Screw |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means | Standards | UL 498 |
| Application | Extra Heavy Duty Industrial | UPC | 783585236490 |
