LEGRAND CANADA INC DW-311-347-W 0-10V DUAL TECH. WALLSWITCHOC

Name: LEGRAND CANADA INC DW-311-347-W 0-10V DUAL TECH. WALLSWITCHOC
Brand: LEGRAND CANADA INC
SKU: wstdw311347w
Price: 323.37 CAD
Availability: OutOfStock

Price $323.37 / EA

Inventory

Available for backorder

0for pick up at Burlington

Manufacturer:LEGRAND CANADA INC

Manufacturer #:DW-311-347-W

Documents

Description

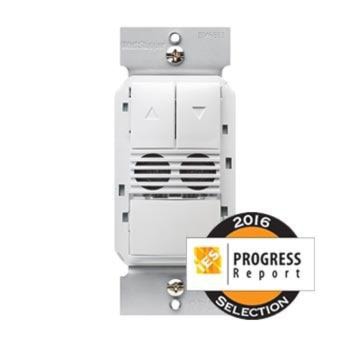

divThe DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs./div

Specifications

Brand Name	WattStopper	Item Name	Wall Switch Sensor
Type	Dual Technology	Voltage Rating	347 VAC
Amperage Rating	4.3 A	Number of Poles	Multi,Location
Sensor Type	Occupancy	Sensing Distance	Major Motion: PIR 35 x 30 ft, Ultrasonic 20 x 20 ft, Minor Motion: PIR 20 x 15 ft, Ultrasonic 15 x 15 ft
Viewing Angle	180°	Color	White
Mounting Type	In-Wall	Series/Model	DW-311
Frequency Rating	50/60 Hz	Maximum Load Capacity	1500 W
Response Time	5, 15, 30 min	Dimmable	Yes
Terminal Connection	Flying Leads	Dimensions	4 in W x 3.03 in D x 2.48 in H
Mounting Height	4 ft	Temperature Rating	32 - 131 °F
Includes	Sensor Mask	Standards	cUL Listed in File Number E101196, RoHS Compliant, UL Listed, UL 924 Listed
UPC	754182940455
