pho1252696
PHOENIX CONTACT LTD. 1252696 TRIO-PS/1AC/24DC/104C/IO
pho1252696
PHOENIX CONTACT LTD. 1252696 TRIO-PS/1AC/24DC/104C/IO
Price
$361.07
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:PHOENIX CONTACT LTD.
Manufacturer #:1252696
Description

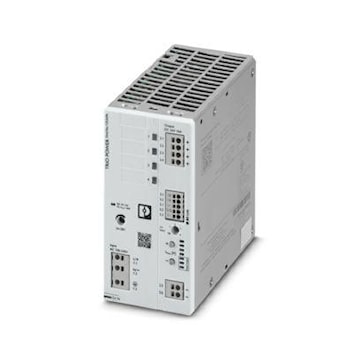

Primary Switched Power Supply Unit with TRIO POWER, push-in connection, 4-channel electronic circuit breaker, IO-Link, DIN rail mounting, input: 1-phase, output: 24 VDC / 10 A, adjustable from 24 to 28 VDC.
Specifications
| Brand Name | Phoenix | Item Name | DC Power Supply |
| Input Voltage | 100 - 240 VAC/VDC | Output Voltage | 24 VDC |
| Power Rating | 240 W | Amperage Rating | 10 A |
| Frequency Rating | 50 Hz | Efficiency | 94.5% at 120 VAC, 95.5% at 230 VAC |
| Terminal Type | Push-In | Material | Aluminum/Polycarbonate |
| Dimensions | 68 mm W x 132 mm D x 135 mm H | Mounting Type | DIN Rail |
| Temperature Rating | -25 to 70 °C | Standards | EN 61010-1, EN 61010-2-201, DIN EN 61558-2-16, IEC 61010-2-201 (SELV), UL Listed, CSA Certified |
