ilspdb556001
ILSCO CANADA NEWCO ULC PDB-55-600-1 AL MECH(P)(5)600-250(S)(5)600-250 T UR
ilspdb556001
ILSCO CANADA NEWCO ULC PDB-55-600-1 AL MECH(P)(5)600-250(S)(5)600-250 T UR
Price
$450.9010
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:PDB-55-600-1
Description

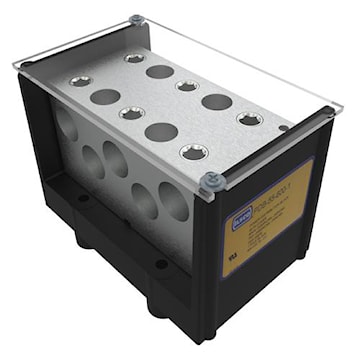

ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 3 in., UL 1059 Recognized, Copper Primary Conductor 600 kcmil - 250 kcmil, Copper Secondary Conductor 600 kcmil - 250 kcmil, 10 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles, 5 ports per pole primary, 5 ports per pole secondary,
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | PDB:PWR DIST BLK AL/CU | Voltage Rating | 600 V |
| Amperage Rating | 950 A cubic | Number of Poles | 1 Pole |
| Temperature Rating | 90 °C | Color | Black |
| Standards | CSA File Number:NA;UL Control Number:NA;UL File Number:E84782;UL / CULUS Specification:UL 1059 Recognized | Application | Power Distribution Block |
| UPC | 783669711578 |
