ilspdb163501
ILSCO CANADA NEWCO ULC PDB-16-350-1 AL MEC 1P LINE350-6 LOAD(6)2/0-14TUR CSA
ilspdb163501
ILSCO CANADA NEWCO ULC PDB-16-350-1 AL MEC 1P LINE350-6 LOAD(6)2/0-14TUR CSA
Price
$189.8081
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:PDB-16-350-1
Description

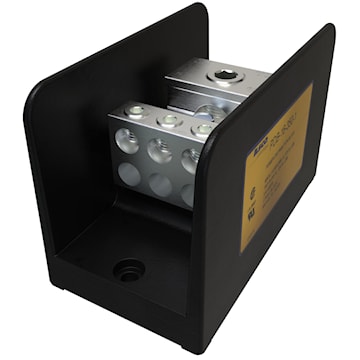

ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 7 conductors, 7 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 6 ports per pole secondary,
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | PDB:PWR DIST BLK AL/CU | Voltage Rating | 600 V |
| Amperage Rating | CU: 310 A | Number of Poles | 1 Pole |
| Temperature Rating | 90 °C | Color | Black |
| Standards | CSA File Number:LR-29601;UL Control Number:NA;UL File Number:E84782;UL / CULUS Specification:UL 1059 Recognized | Application | Power Distribution Block |
| UPC | 783669710311 |
