ilsnbas0061b
ILSCO CANADA NEWCO ULC NBAS-006-1-B AL MEC (6) 4-14 (1) MTG T URCSA
ilsnbas0061b
ILSCO CANADA NEWCO ULC NBAS-006-1-B AL MEC (6) 4-14 (1) MTG T URCSA
Price
$13.0621
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:NBAS-006-1-B
Description

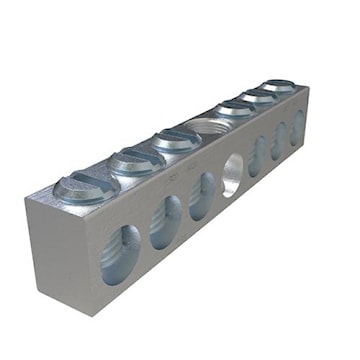

ILSCO Neutral Bar, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Recognized, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 6 conductors, 7 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | NBAS:AL NEUTRAL BAR 4-14 | Voltage Rating | 35000 V |
| Connection Type | Mechanical | Material | Aluminum |
| Finish | Tin Plated | Standards | UL File Number E6207 |
| Application | Neutral Bar | UPC | 783669005561 |
