sieb260

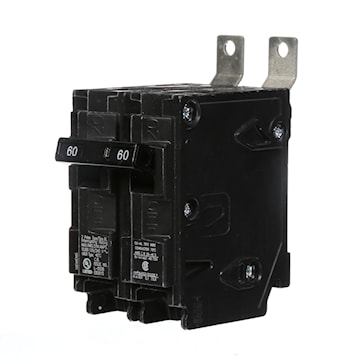

DEALER SOURCE INC. B260 BREAKER 60A 2P 120/240V 10 KA
sieb260
DEALER SOURCE INC. B260 BREAKER 60A 2P 120/240V 10 KA
Price
$75.73
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:DEALER SOURCE INC.
Manufacturer #:B260
Description
2-Pole bolt-on (common-trip 120/240 VAC ). Molded case circuit breakers. Panel board mounting with INSTA-WIRE.
Specifications
| Brand Name | Siemens | Item Name | Molded Case Circuit Breaker |
| Type | Type BL | Number of Poles | 2 |
| Interrupt Rating | 10 kA | Amperage Rating | 60 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Bolt-On, Stud |
| Mounting Type | Panel | Phase | 1 |
| Frequency Rating | 60 Hz | Conductor Size | 8-2 AWG Aluminum, 8-4 AWG Copper |
| Actuator | Switch Position Knob, Toggle | Frame | BL/125 A |
| Trip Type | Thermal Magnetic | Temperature Rating | 40 °C |
| Dimensions | 3 in L x 3 in W x 2 in H | For Use With | Siemens P1 Panelboards |
| Standards | CSA Certified, HACR Rated, UL 489 Listed | Application | Electrical Distribution |
