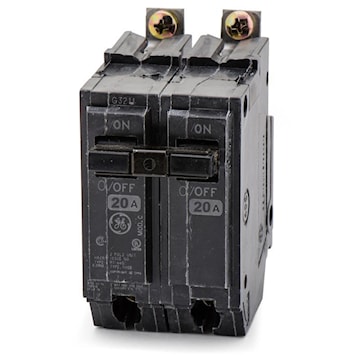

DEALER SOURCE INC. THQB2120 Molded Case Circuit Breaker Standard, Internal Common Trip Bar 20 A, 2 P, Box Lug
gelthqb2120
DEALER SOURCE INC. THQB2120 Molded Case Circuit Breaker Standard, Internal Common Trip Bar 20 A, 2 P, Box Lug
Price
$64.68
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:DEALER SOURCE INC.
Manufacturer #:THQB2120
Description
Molded case circuit breakers TQB, THQB 120/240 Vac, internal common trip. Interrupting rating 10 Kiloampere. Wire size 14 to 8 Awg (Copper), 12 to 8 Awg (Aluminum). 1 Inch bolt on mounting.
Specifications
| Brand Name | Emerson | Item Name | Molded Case Circuit Breaker |
| Type | Standard, Internal Common Trip Bar | Series | THQB |
| Number of Poles | 2 | Interrupt Rating | 10 kA at 120/240 VAC |
| Amperage Rating | 20 A | Voltage Rating | 120/240 VAC |
| Terminal Connection | Box Lug | Mounting Type | Bolt-On |
| Phase | 1 | Conductor Size | 14 - 8 kcmil Copper, 12 - 8 kcmil Aluminum |
| Frame | Q-Line | Trip Type | Non-Interchangeable |
| Dimensions | 3.28 in L x 2 in W x 2.38 in D | Standards | UL Listed, HACR Rated, GSA Compliant |
| Application | For Load Centers and Lighting Panels |
