schchom240

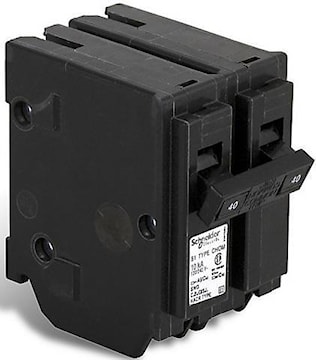

DEALER SOURCE INC. CHOM240 Miniature Circuit Breaker Standard 40 A, 2 P, Screw Clamp
schchom240
DEALER SOURCE INC. CHOM240 Miniature Circuit Breaker Standard 40 A, 2 P, Screw Clamp
Price
$51.97
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:DEALER SOURCE INC.
Manufacturer #:CHOM240
Description
Homeline™ Miniature circuit-breaker with plug-on mounting mode and screw clamp terminals electrical connection. Suitable for use in HACR and switching duty rated. Homeline™ circuit breaker provide the high level of protection. The industry's best value in circuit protection in a 1 inch wide industry-standard format for one-pole circuit breakers. Homeline™ breakers feature quick-open circuit breaker, which give homeowners a new standard for reliable, fast acting circuit protection. Provides overload and short circuit protection (240 VAC).
Specifications
| Brand Name | Square D | Item Name | Miniature Circuit Breaker |
| Type | Standard | Number of Poles | 2 |
| Interrupt Rating | 10 kA | Amperage Rating | 40 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Screw Clamp |
| Mounting Type | Plug-On | Phase | 1 |
| Conductor Size | 8-2 AWG Aluminum/Copper | Trip Type | Thermal Magnetic, Long Time and Instantaneous |
| Temperature Rating | 40 °C | Dimensions | 2-1/2 in L x 2 in W x 3-3/4 in H |
| For Use With | HomeLine Load Centers | Standards | CSA Certified, HACR Rated, RoHS Compliant |
