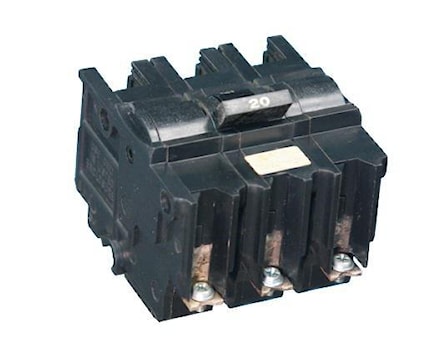

DEALER SOURCE INC. NB3P20 Stab-Lok Miniature Circuit Breaker 20 A, 3 P, Screw
Description
Circuit breaker bolt-on FEDERAL PACIFIC 3 poles 20A 120/240V 10KA.
Specifications
Brand Name | Federal Pioneer | Sub Brand | Stab-Lok |
Item Name | Miniature Circuit Breaker | Series | NB |
Number of Poles | 3 | Interrupt Rating | 10 kA |
Amperage Rating | 20 A | Voltage Rating | 120/240 VAC |
Terminal Connection | Screw | Mounting Type | Plug-in |
Conductor Size | 14-1/0 AWG Aluminum/Copper | Trip Type | Thermal Magnetic |
Dimensions | 2-1/2 in L x 3 in W x 3 in H | Standards | CSA Certified |
