LEGRAND CANADA INC BZ-250-347 POWER PACK, 120-347V50/60HZ24

Name: LEGRAND CANADA INC BZ-250-347 POWER PACK, 120-347V50/60HZ24
Brand: LEGRAND CANADA INC
SKU: wstbz250347
Price: 122.34 CAD
Availability: OutOfStock

Price $122.34 / EA

Inventory

Available for backorder

0for pick up at Burlington

Manufacturer:LEGRAND CANADA INC

Manufacturer #:BZ-250-347

Documents

Description

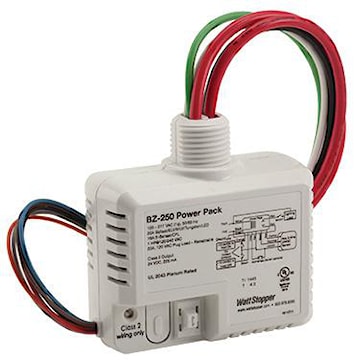

pThe BZ-250 power pack switches lighting or plug loads On and Off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as HoldOn, Hold-Off and load shed applications when used with lighting control panels or building automation systems. This device is constructed with environmentally friendly materials and is RoHS-compliant./p

Specifications

Brand Name	WattStopper	Item Name	Power Pack
Voltage Rating	120 - 347 V	Amperage Rating	16 A, 15 A
Frequency Rating	50/60 Hz	Output Rating	24 VDC, 225 mA
Indicator Type	LED	Dimensions	3 in W x 2.4 in D x 1.5 in H
Humidity	5 - 95% Relative, Non-Condensing	Warranty	5 yr
Standards	CSA C22.2 No. 14-10 Certified, RoHS Compliant, UL 244A Listed, UL 508 Listed	Application	For Lighting Circuits, Plug Load Circuits, Self-Contained Air Conditioners, Pumps, Fans, Motors and Motorized Damper Controls
UPC	754182938056
