rit3305540

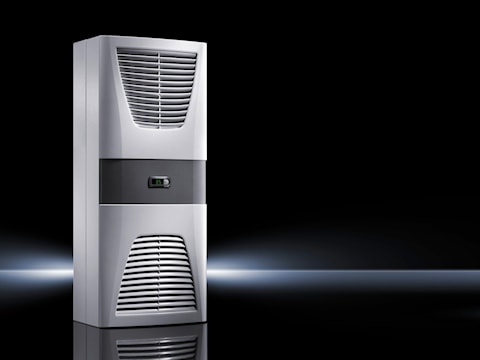

RITTAL SYSTEMS LTD 3305540 AC 5493 BTU 460V 3 PH 60HZ TYPE12 STEEL
rit3305540
RITTAL SYSTEMS LTD 3305540 AC 5493 BTU 460V 3 PH 60HZ TYPE12 STEEL
Price
$7,493.38
/ EA
Inventory
1for delivery
0for pick up at
Burlington
Manufacturer:RITTAL SYSTEMS LTD
Manufacturer #:3305540
Description
Energy efficient Blue e wall mounting cooling units in performance classes 300 W to 4000 W, and with integrated electrical condensation evaporation for 1000 W and above. Available in the special formats horizontal and flat.
Specifications
| Brand Name | Rittal | Item Name | Cooling Unit |
| Type | Wall Mounted Cooling Unit | Cooling Capacity | 5459 Btu at 50 Hz (L35 L35), 5493 Btu at 60 Hz (L35 L35), 4538 Btu at 50 Hz (L35 L50), 4606 Btu at 60 Hz (L35 L50) |
| Voltage Rating | 400/460 V | Flow Rate | 529.7 ft³/min (External), 470.9 ft³/min (Internal) |
| Control Type | e-Comfort Controller | Amperage Rating | 2.5 A at 50 Hz, 2.8 A at 60 Hz |
| Frequency Rating | 50/60 Hz | Power Rating | 1.6 kW at 50 Hz (L35 L35), 1.61 kW at 60 Hz (L35 L35), 1.33 kW at 50 Hz (L35 L50), 1.35 kW at 60 Hz (L35 L50) |
| Temperature Rating | 10 - 55 °C | Mounting Type | Wall |
| Enclosure Type | Type 12, IP34, IP54 | Material | Sheet Steel |
| Color | Light Gray | Dimensions | 16 in W x 10 in D x 37 in H |
| Includes | Nano-Coated Condenser, Integral Electric Condensate Evaporation, Wired Ready for Connection (Plug-in Terminal Strip), Drilling Template, Fasteners | Standards | CSA Certified, cUL Listed, DINEN14511, TUV, UL Listed |
| UPC | 639889000186 |
