fesvuvg-l10-b52-t-m7-1p3

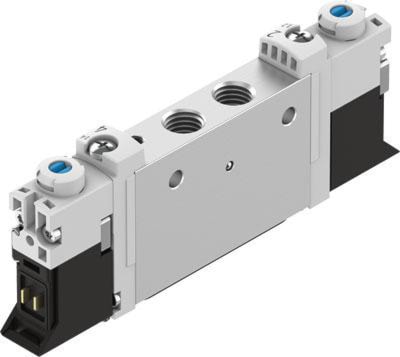

FESTO INC 566475 VUVG-L10-B52-T-M7-1P3 solenoid valve
fesvuvg-l10-b52-t-m7-1p3
FESTO INC 566475 VUVG-L10-B52-T-M7-1P3 solenoid valve
Price
$110.11
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:566475
Description
solenoid valve VUVG-L10-B52-T-M7-1P3 Valve function=5/2 bistable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=340 - 380 l/min, Operating pressure MPa=0,15 - 0,8 MPa
Specifications
| Brand Name | Festo | Item Name | Compressed Air Solenoid Valve |
| Type | 2-Position, 5-Way | Pressure Rating | 1.5 - 8 bar |
| Body Material | Wrought Aluminum Alloy | Series/Model | VUVG |
| Nominal Size | M7 | Actuator | Electrical |
| Flow Rate | 340 - 380 l/min | Port Type | Female |
| Softgoods Material | HNBR/NBR | Finish | Anodized |
| Temperature Rating | -5 to 60 °C | Standards | cULus Listed, RoHS Compliant, RCM Certified, VDMA24364-B1/B2-L |
