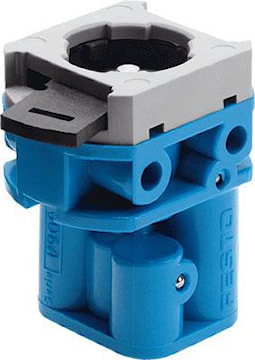

FESTO INC 6817 SV-3-M5 front panel valve
fessv-3-m5
FESTO INC 6817 SV-3-M5 front panel valve
Price
$109.47
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:6817
Description
front panel valve SV-3-M5 Valve function=3/2 closed, monostable, Type of actuation=manual, Standard nominal flow rate=65 l/min, Operating pressure MPa=-0,095 - 0,8 MPa, Operating pressure=-0,95 - 8 bar
Specifications
| Brand Name | Festo | Item Name | Compressed Air Front Panel Valve |
| Type | 2-Position, 3-Way, Closed, Monostable | Pressure Rating | -0.95 to 8 bar |
| Body Material | Plastic | Series/Model | SV |
| Nominal Size | 2 mm | Actuator | Manual |
| Flow Rate | 65 l/min | Softgoods Material | NBR |
| Dimensions | 38 mm L x 28 mm W | Temperature Rating | -10 to 60 °C |
