fesms6-ee-1/2-v110-s

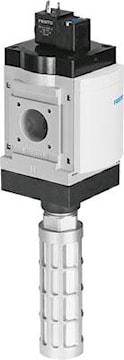

FESTO INC 538731 MS6-EE-1/2-V110-S on-off valve
fesms6-ee-1/2-v110-s
FESTO INC 538731 MS6-EE-1/2-V110-S on-off valve
Price
$277.78
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:538731
Description
on-off valve MS6-EE-1/2-V110-S Electrical, with silencer, direction of flow: from left to right Design structure=Piston slide, Type of actuation=electrical, Exhaust-air function=not throttleable, Manual override=(* detenting, * Pushing), Type of reset=mechanical spring
Specifications
| Brand Name | Festo | Item Name | Compressed Air On/Off Valve |
| Type | 2-Position, 3-Way | Connection Type | FNPT |
| Pressure Rating | 4 - 10 bar | Body Material | Die-Cast Aluminum |
| Series/Model | MS6-EE | Nominal Size | G1/2 |
| Actuator | Electrical | Flow Rate | 7000 l/min |
| Softgoods Material | NBR | Dimensions | 97 mm L x 62 mm W x 198 mm H |
| Temperature Rating | -10 to 60 °C | Standards | RoHS Compliant, VDMA24364-B1/B2-L |
