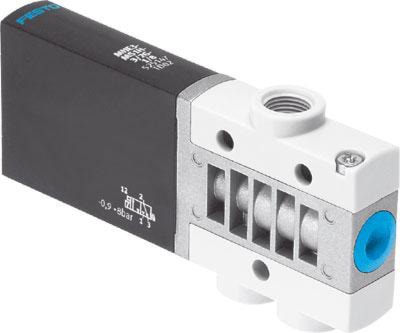

FESTO INC 525147 MHE3-MS1H-3/2G-1/8 solenoid valve
Description
solenoid valve MHE3-MS1H-3/2G-1/8 individual valve, fast switching. Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=14 mm, Standard nominal flow rate=200 l/min, Operating pressure MPa=-0,09 - 0,8 MPa
Specifications
Brand Name | Festo | Item Name | Compressed Air Solenoid Valve with Plug Vane |
Type | 2-Position, 3-Way, Closed, Fast Switching, Monostable | Pressure Rating | -0.9 to 8 bar |
Body Material | Die-Cast Zinc | Series/Model | MHE |
Nominal Size | 3 mm | Actuator | Electrical |
Flow Rate | 200 l/min | Trim Material | Galvanized Steel |
Softgoods Material | HNBR/NBR | Dimensions | 10 mm W x 34 mm H |
Temperature Rating | -5 to 60 °C | Standards | cULus Listed, RCM Certified, RoHS Compliant |
