fesmhe2-ms1h-5/2-qs-4

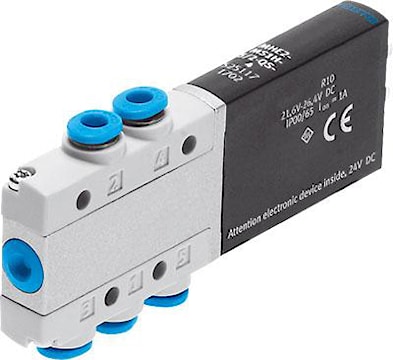

FESTO INC 525117 MHE2-MS1H-5/2-QS-4 solenoid valve
fesmhe2-ms1h-5/2-qs-4
FESTO INC 525117 MHE2-MS1H-5/2-QS-4 solenoid valve
Price
$254.38
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:525117
Description
solenoid valve MHE2-MS1H-5/2-QS-4 individual valve, fast switching. Valve function=5/2 monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=90 l/min, Operating pressure MPa=-0,09 - 0,8 MPa
Specifications
| Brand Name | Festo | Item Name | Compressed Air Solenoid Valve with Plug Vane |
| Type | 2-Position, 5-Way, Fast Switching, Monostable | Pressure Rating | -0.9 to 8 bar |
| Body Material | Die-Cast Zinc | Series/Model | MHE |
| Nominal Size | 2 mm | Actuator | Electrical |
| Flow Rate | 90 l/min | Trim Material | Galvanized Steel |
| Softgoods Material | HNBR/NBR | Dimensions | 10 mm W x 34 mm H |
| Temperature Rating | -5 to 60 °C | Standards | cULus Listed, RCM Certified, RoHS Compliant |
